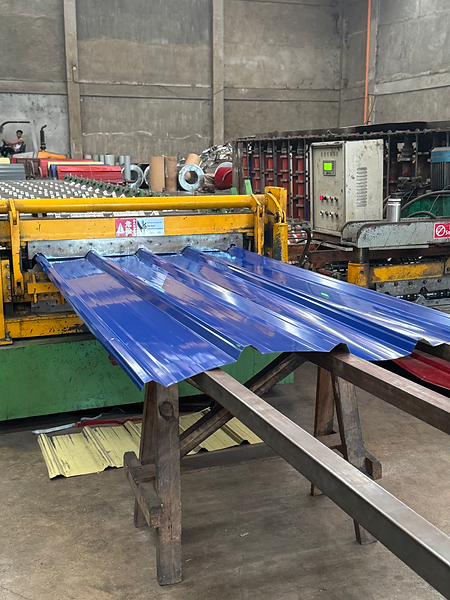

Ribtype

Nominal Thickness

0.30mm, 0.32mm, 0.35mm, 0.38mm, 0.40mm, 0.42mm, 0.48mm

0.50mm, 0.60mm

​​

Substrates

Hot-dip Metallic Coated Steel
– Hot-dip Zinc-Coated Steel
– Hot-dip 55% Aluminum-Zinc Alloy Coated Steel

​

Feed Width

915 mm and 1220 mm

Effective Coverage780mm and 1070mm (+/- 10mm)

Rib Height22 mm

​

Paint Coating System

Oven baked oil-free polyester topcoat over a corrosion-resistant primer with oil-free polyester backing coat
PVDF, SMP, available upon request

​

Paint Coating Thickness

Topcoat : 12 – 15 microns
Backcoat : 4–8 microns

​

Available Colors

Beige, Blue, Brown, Green, Red, White, Gray, Terracotta Orange, Red Pure white, White
Other colors available with terms and conditions applied

​

Length

8,10, 12 feet standard
Customized length available but subject to terms & conditions
Onsite rollforming for longer panels
